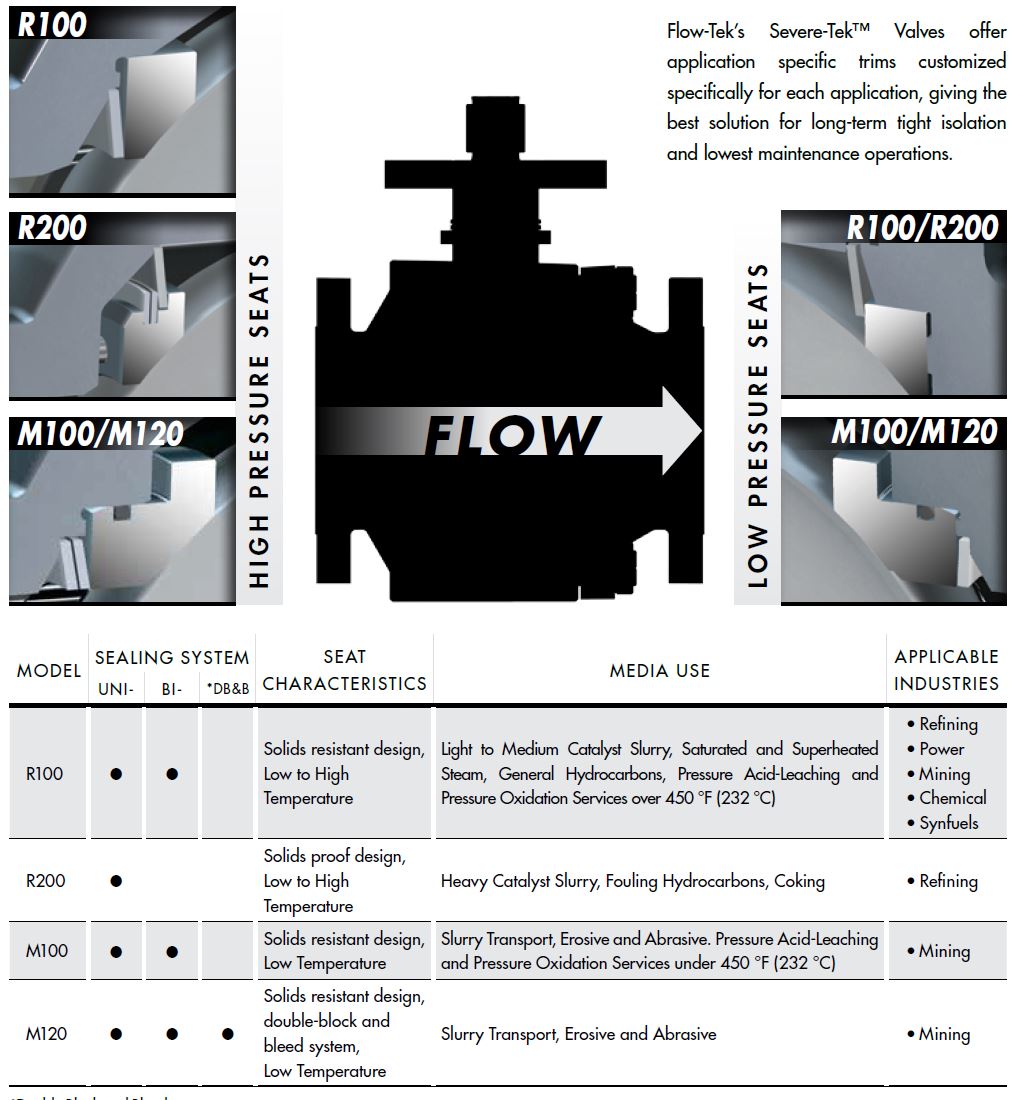

Full Port ¼” through 4”
Standard Port ¾” through 2 ½”
Materials Stainless Steel & Carbon Steel
Pressure Ratings Full Port: 2200 psi WOG
Standard Port: 2200 psi WOG
FP & SP: up to 425 psi WSP
Features include live loaded Smart Stem seals through 2”, a
redundant body seal design, anti-static protection and locking
safety handles. Hex head cap screws join end connections to the
tapped center section. Special body and trim materials available.
• Fire safe to API 607
• Designed in accordance
with ASME B16.34
• ISO 5211 Secure Mount
actuator top flange

Full Port ¼” through 12”
Materials 7000 Stainless Steel
8000 Carbon Steel
Pressure
Ratings
¼”-4”: 1000 psi WOG
6”-12”: 400 psi WOG
Features include live loaded Smart Stem
seals through 2½”, anti-static protection
and locking safety handles. These valves
are also available with cavity filler seats
for special service requirements. Special
body and trim materials available.
• ISO 5211 Secure Mount
actuator top flange

Full Port ¼” through 4”
Materials 5000 Stainless Steel
6000 Carbon Steel
Pressure
Ratings
¼”-2”: 1000 psi WOG
2 ½”-4”: 800 psi WOG
All the benefits of a 3 Piece body design
at an economical price. Features include a
swing out center section for ease of installation
and maintenance, adjustable stem
packing, heavy duty internal entry stems
and stainless steel safety locking handles.
• ISO 5211 Secure Mount
actuator top flange

Tube Bore Port ¼” through 2”
Valve Sizes ½” through 4”
Materials Stainless Steel
Pressure Ratings ¼”-4”: 1000 psi WOG
Specifically designed for high purity
applications. The ball and end connections
have the same I.D. as the tube
piping system. Valves come standard
with 20 RA maximum (SFV-1) surface
finishes and all are solution cleaned and
bagged. Features include live loaded
Smart Stem seals through 2½” and
locking safety handles.
• Comply with ASME BPE
• USP Class IV soft goods
• ISO 5211 (½”–2”) Secure Mount
actuator top flange

Body 2 Piece
Full Port ½” through 12”
Materials Stainless Steel & Carbon Steel
Pressure Ratings F15: ASME Class 150
F30: ASME Class 300
Features include live loaded Smart Stem seals through 2”,
anti-static protection and locking safety handles. Larger sized
valves feature trunnion-type ball support. Special body and trim
materials available.
• Can be furnished
Fire safe to API 607
• Designed in accordance
with ASME B16.34
• Face to face ASME B16.10 long pattern
• ISO 5211 Secure Mount actuator top flange

Body 1 Piece
Standard Port 1” through 12”
Materials Stainless Steel & Carbon Steel
Pressure Ratings RF15: ASME Class 150
RF30: ASME Class 300
These end entry flanged valves feature live loaded Smart
Stem seals through 2”, anti-static protection and locking safety
handles. Special body and trim materials available.
• Can be furnished
Fire safe to API 607
• Designed in accordance
with ASME B16.34
• Face to face ASME B16.10 short pattern
• ISO 5211 Secure Mount actuator top flange

¼” through 2”
Standard Port 3 Way
Materials Stainless Steel
Pressure
Ratings
¼”-1¼”: 1000 psi WOG
1½”-2”: 800 psi WOG

¼” through 4”
Full Port
230 – 3 Way
240 – 4 Way
Materials Stainless Steel
& Carbon Steel
Pressure
Ratings
¼”-1”: 1000 psi WOG
1¼”-4”: 800 psi WOG

Full Port MPF150 up to 10”
MPF300 up to 6”
Materials Stainless Steel
& Carbon Steel
Pressure
Ratings
MPF150: ASME Class 150
MPF300: ASME Class 300
• End connections designed
to ASME 16.5

Body 2 Piece
Full Port ½” through 3”
Materials Stainless Steel
Pressure Ratings ½”-3”: 1000 psi WOG/150psi WSG
Designed for ease of automation, features include live loaded
Smart Stem seals through 2”, anti-static protection, replaceable
seats and seals, and safety latch handles.
• ISO 5211 Secure Mount actuator top flange

Body 2 Piece
Full Port ¼” through 4”
Materials Stainless Steel
Pressure ¼”-4”: 1000 psi
Ratings WOG/150psi WSG
Series S80 ball valves have been designed
to meet the needs of the chemical,
textile and process industries. An economical
full port valve featuring adjustable
stem packing, safety latch handles, and
optional oval handles.
• Optional seal welded body

Body 2 Piece
Standard Port ¼” through 3”
Materials S70 Stainless Steel
S90 Carbon Steel
Pressure ¼”-1”: 2000 psi WOG
Ratings
1¼”-2”: 1500 psi WOG
2½”-3”: 1000 psi WOG
150psi WSG
An economical solution for high pressure
applications in the process industry. Features
include adjustable stem packing, integrally
cast actuator mounting pad, safety latch
handles, and optional oval handles.

Body 1 Piece
Reduced Port ¼” through 2”
Materials Stainless Steel
Pressure ¼”-2”: 2000 psi
Ratings
WOG/150psi WSG
One piece body design supplies maximum
structural strength while reducing
leak paths. Features include live loaded
stem seals, safety latch handles, and
optional oval handles.
• Can be furnished Fire safe to API 607

Body 1 Piece
Reduced Port ¼” through 2”
Materials Stainless Steel
Pressure Ratings ¼”-2”: 1000 psi WOG/150psi WSG
An economical, compact, one piece body design that supplies
maximum structural strength while reducing leak paths. Features
include low operating torque and safety latch handles. Optional
oval and wing handles are available.

3 Piece Body ¼” through 1”
Materials Stainless Steel
Pressure Ratings HP: 6000 psi WOG
HX: 10,000 psi WOG
3HP: 6000 psi WOG
End Connections NPT Threaded

2 Piece Body ¼” through 4”
Materials Brass
Pressure Ratings ¼”-2”: 600 psi WOG
2 ½”-4”: 400 psi WOG
¼”-4”: 150 psi WSP
End Connections NPT Threaded

Full Port, One Piece Ball & Stem Design
Size: 1 – 6 inch
Operating temperature: -22 ˚F to +400 ˚F
Body design: ASME B16.34
Flanges: ASME B16.5 Class 150 RF
Face to face: ASME B16.10
Max. Operating pressure: 250 psig
Optional vented ball for chlorine gas service
